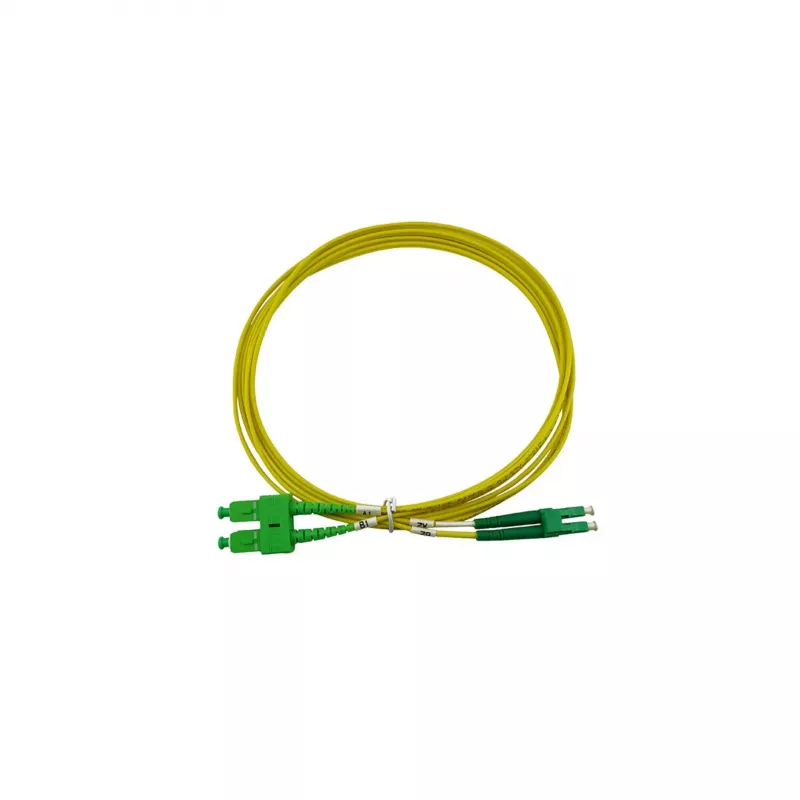

BlueOptics duplexné optické patch kábel LC-APC/SC-APC singlemode 3 metre

The BlueOptics Duplex Fibre Optic Patch Cable LC-APC/SC-APC Singlemode 3 Metres is a high-performance fibre optic patch cable designed for reliable data transmission in singlemode networks. With LC/APC to SC/APC connectors, this duplex cable ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and telecommunication applications.

Advantages

This cable features APC (Angled Physical Contact) polish, which minimizes back reflection and ensures superior signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the yellow colouring allows for easy identification. With a 9/125 µm core/cladding diameter, it supports wavelengths of 1310 nm and 1550 nm, offering low attenuation and high bandwidth.

Suitable for

• FTTH (Fiber to the Home) installations
• CATV networks
• Telecommunication and data centre connections
• Any singlemode fibre optic network requiring LC/APC to SC/APC connectivity

Key specifications

• Connector A: LC/APC
• Connector B: SC/APC
• Fiber Type: Singlemode (OS2)
• Fiber Count: Duplex (2 Fibers)
• Core/Cladding Diameter: 9/125 µm
• Polish Type: APC
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Ferrule Material: Zirconia Ceramic
• Operating Wavelengths: 1310 nm, 1550 nm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Minimum Bend Radius: 30 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC/APC and SC/APC ports. Store in a clean, dry environment.
