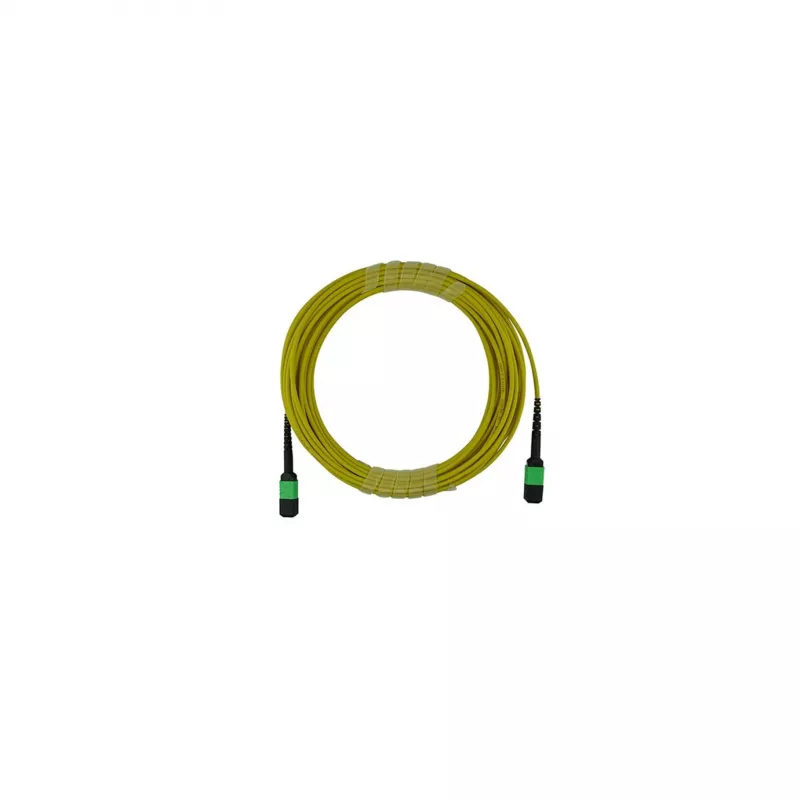

BlueOptics Kompatibilný s NVIDIA MFP7E30-N003 optický trunk kábel, MPO/APC na MPO/APC, Singlemode OS2, 3 m, žltá

The BlueOptics Compatible NVIDIA MFP7E30-N003 fibre optic trunk cable is a high-performance, single-mode OS2 patch cable designed for data centres and high-speed networking environments. With MPO/APC connectors on both ends, this 3-metre cable ensures reliable, low-loss connectivity for NVIDIA MFP7E30-N003 transceivers and InfiniBand applications.

Advantages

This trunk cable offers exceptional signal integrity with typical insertion loss ≤0.35 dB and return loss ≥60 dB. The LSZH jacket provides safety in confined spaces, while the yellow colour aids easy identification. Polarity Type B (cross-over) ensures correct fibre alignment for duplex transmission.

Suitable for

• Data centre interconnects
• High-speed networking (10G/40G/100G/400G)
• InfiniBand systems
• NVIDIA MFP7E30-N003 transceiver links
• Single-mode OS2 backbone cabling

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Fibre Type: Single-Mode (OS2), 9/125 µm
• Number of Fibres: 12
• Connector A: MPO/APC (Male)
• Connector B: MPO/APC (Male)
• Connector Polish: APC (Angled Physical Contact)
• Cable Length: 3 metres
• Polarity: Type B (Cross-Over)
• Insertion Loss (Typical): ≤ 0.35 dB
• Return Loss (Typical): ≥ 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Operating Wavelengths: 1310nm, 1550nm
• Standards: TIA/EIA-568.3-D, IEC 61754-7, RoHS, CE

Recommendations

For optimal performance, pair this cable with compatible MPO/APC transceivers and ensure clean, dust-free connectors. Store in a dry, temperature-controlled environment.
