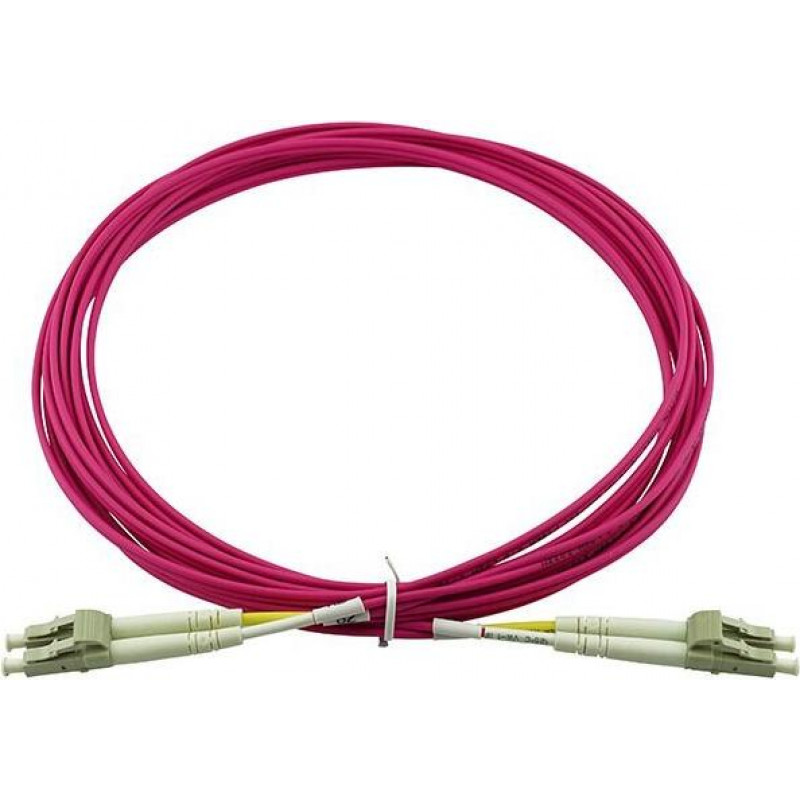

BlueOptics Ubiquiti UACC-OFC-M2-LULU-50CM LC-LC multimode OM4 patch kábel 0,5 metra

In high-density data centers and enterprise networks, unreliable fiber links cause downtime and performance bottlenecks. The BlueOptics Ubiquiti UACC-OFC-M2-LULU-50CM LC-LC Multi-mode OM4 Patch Cable solves this with a premium 0.5-meter connection built for 10G, 40G, and 100G Ethernet. Its laser-optimized OM4 core and ceramic ferrules ensure low insertion loss and high return loss, making it ideal for short-reach interconnects between switches, servers, and patch panels.

Who is it for

Network engineers, data center technicians, and IT integrators who need a dependable, standards-compliant patch cable for high-speed multimode fiber links. Perfect for Ubiquiti UACC-OFC-M2-LULU-50CM compatible ports, SAN environments, and any space-constrained rack where a short, flexible cable is required.

Main features

• OM4 multimode fiber with 50/125 µm core/cladding supports 10GbE, 40GbE, and 100GbE up to 100 meters at 850 nm.
• LC to LC duplex connectors with ceramic ferrules and PC polishing for precise alignment and minimal signal loss.
• Aqua LSZH (Low Smoke Zero Halogen) jacket meets fire safety standards and reduces toxic emissions in confined spaces.
• Ultra-short 0.5-meter length with 7.5 mm minimum bend radius for tidy, high-density patching.
• Insertion loss ≤ 0.3 dB and return loss ≥ 30 dB ensure stable, error-free transmission.
• Compliant with TIA/EIA-568-C.3, ISO/IEC 11801, and RoHS for global interoperability and environmental safety.

Specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multi-mode
• Fiber Class: OM4
• Connector Type A: LC
• Connector Type B: LC
• Cable Length: 0.5 m (50 cm)
• Core/Cladding Diameter: 50/125 µm
• Jacket Color: Aqua
• Jacket Material: LSZH
• Data Rate Support: 10GbE, 40GbE, 100GbE
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 7.5 mm
• Standards Compliance: TIA/EIA-568-C.3, ISO/IEC 11801, RoHS
• Cable Diameter: 2.0 mm
• Ferrule Material: Ceramic
• Polishing Type: PC
• Compatibility: Ubiquiti UACC-OFC-M2-LULU-50CM
• Application: Data Center, SAN, LAN, Enterprise Networks

Tips

For best performance, avoid exceeding the minimum bend radius and keep connectors capped when not in use to prevent dust contamination. Pair with OM4-compatible transceivers to fully utilize 40G/100G speeds. This cable is ideal for patching between adjacent ports in high-density fiber panels.
