DeLOCK 64338 Interný M.2 adaptér Mini PCI Express konektor samec

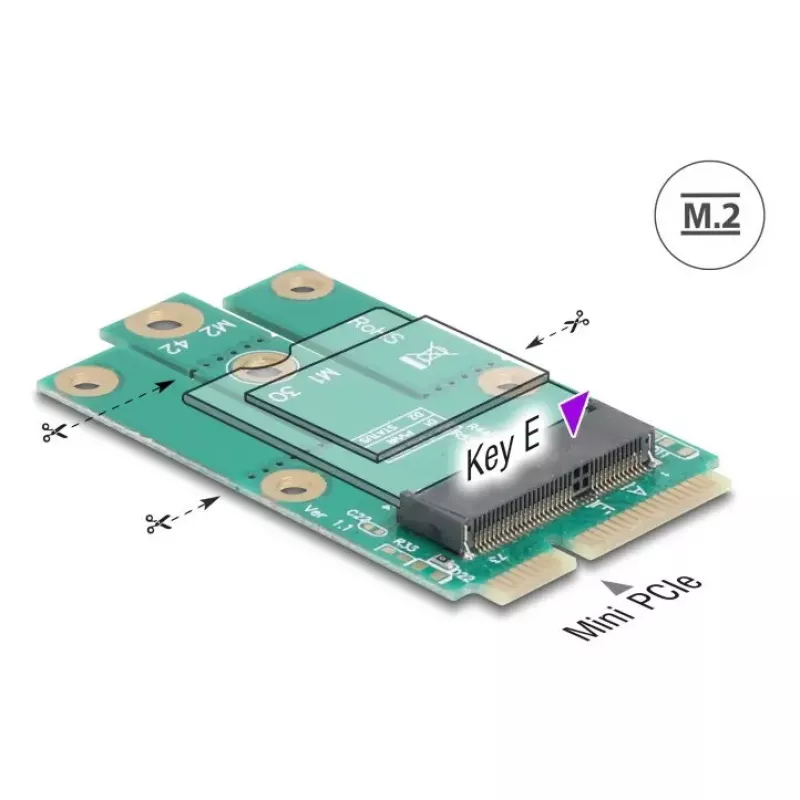

This adapter by Delock allows installation of an M.2 module in 2242, 2230, 3042 or 3030 form factors into a system via a Mini PCIe interface. The DeLOCK 64338 is an internal M.2 adapter with a male Mini PCI Express connector and compact dimensions (30 mm width, 54 mm depth, 4 mm height), designed for space‑constrained installations.

Advantages

The adapter supports multiple M.2 module lengths through a predetermined breaking point that lets you shorten the board from full size to half size. Its Mini PCIe male interface enables direct installation into compatible Mini PCIe slots, and the compact footprint makes it suitable for small enclosures and embedded systems.

Suitable for

• Adding M.2 SSDs or modules to systems with a Mini PCIe slot
• Compact PCs, embedded systems and industrial motherboards
• Prototyping and testing M.2 modules in limited-space environments

Key specifications

• Brand: DELOCK
• Model: 64338
• Interface: Mini PCI Express (male)
• Supported M.2 formats: 2242, 2230, 3042, 3030
• Dimensions: 30 mm (W) × 54 mm (D) × 4 mm (H)
• MPN: 64338
• EAN: 4043619643387

How to use

Insert the adapter into a free Mini PCIe slot on the host motherboard or system board using the male connector. Mount the M.2 module in the appropriate position for its length and secure it according to the host system's mounting method. If a shorter adapter length is required, shorten the board at the predetermined breaking point before installation to obtain the half‑size form factor.

Recommendations

Ensure the host system supports the particular M.2 module type and keying before installation. Power off the system and follow anti‑static precautions when handling the adapter and M.2 modules. Verify mechanical clearance in the enclosure after any board shortening.
