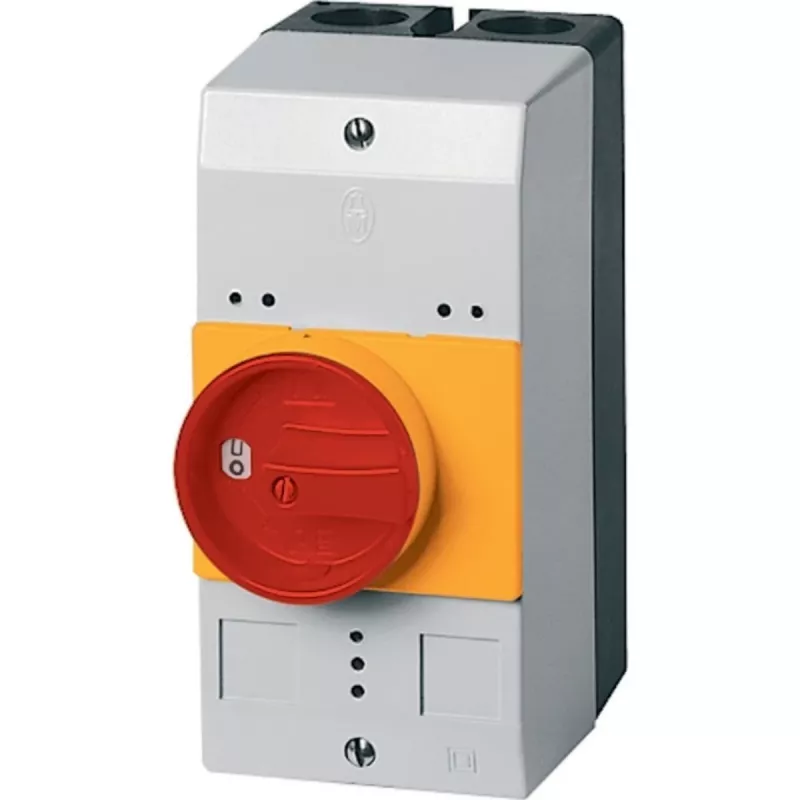

Eaton CI-PKZ0-GRVM puzdro s otočným spínačom, červená/žltá, 158 x 80 x 126 mm 263525

This enclosure with integrated rotary switch provides a robust housing for Eaton PKZ0 motor protective circuit breakers. Its red and yellow insulating enclosure offers a clear visual indication and secure operation in industrial control environments.

Advantages

The rotary switch allows straightforward ON/OFF control of the connected motor protection device, while the surface-mount design simplifies installation. The enclosure's insulating material ensures electrical safety and durability.

Suitable for

• Motor protection circuits using Eaton PKZ0 series breakers
• Industrial control panels requiring a safety disconnect
• Surface mounting in machinery or equipment

Key specifications

• Product type: Enclosure with rotary switch
• Series: CI-PKZ0
• Enclosure material: Insulating material
• Enclosure colour: Red / Yellow
• Protection degree: IP65
• Mounting type: Surface mount
• Number of devices/modules: 1
• Rotary switch function: Main switch / motor protection
• Number of switch positions: 2 (ON/OFF)
• Cable entry: Cable gland entries
• Application: Industrial control, motor protection, safety disconnect
• Operating temperature range: -25 to +55 °C
• Dimensions (L x W x H): 158 x 80 x 126 mm

Recommendations

Ideal for panel builders and maintenance teams needing a reliable, pre-wired enclosure for motor protective circuit breakers with a built-in disconnect function.
