Eaton KLV-48HWP-F podomietkový rozvádzač, 4 rady, 48 modulov, biele oceľové dvere 178812

The Eaton KLV-48HWP-F stands out with its flush-mounted design tailored for cavity walls, offering a clean, integrated look for residential and commercial electrical installations. Its 4-row layout provides 48 module units, delivering ample space for circuit breakers and other DIN rail devices while maintaining a compact footprint.

Highlights

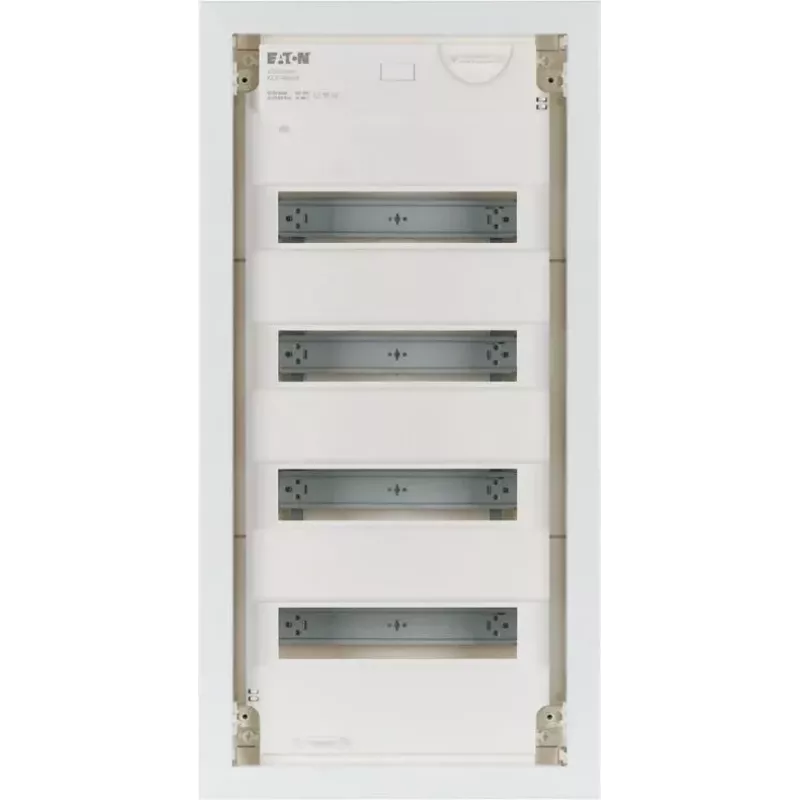

• 4 rows, 48 module units (12 per row) for flexible configuration
• Flush-mounted (cavity wall) installation for a seamless appearance

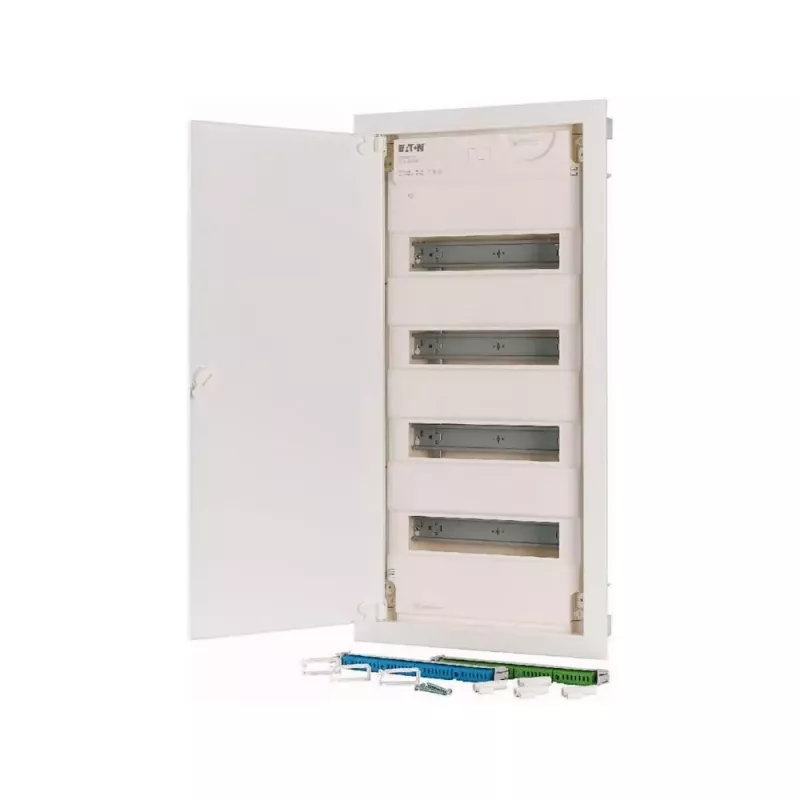

• White steel door (RAL 9016) with opaque finish for a modern look
• IP30 protection class, suitable for indoor use
• Rated current 63 A, rated voltage 400 V AC

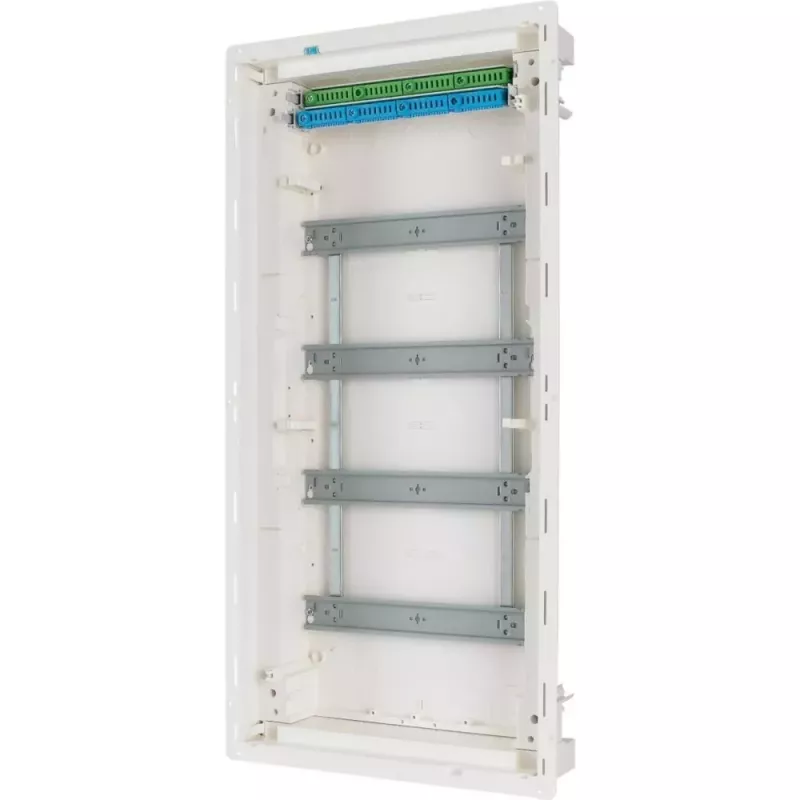

• Includes plug-in PE/N terminal blocks (2 x 21 terminals)
• Pre-punched knockouts on top, bottom, and sides for easy cable entry

In daily use

This distribution board simplifies installation with its pre-punched knockouts and included PE/N terminal blocks. The steel door provides durability, while the white finish blends with standard interiors. Its 97 mm installation depth fits standard cavity walls, and the maximum permissible dissipation power of 40 W ensures safe operation with connected devices.

Full specifications

• Mounting type: Flush-mounted (cavity wall)
• Number of rows: 4
• Module units: 48 (12 per row)
• Protection class: IP30
• Housing material: Plastic
• Door material: Steel sheet
• Door colour: White (RAL 9016)
• Door type: Opaque
• Rated current: 63 A
• Rated voltage: 400 V AC
• Glow wire test temperature: 850 °C
• Standards: DIN VDE 0603-1, DIN 43871
• PE/N terminal blocks: Included (plug-in type)
• Number of PE/N terminals: 2 x 21
• Installation depth: 97 mm
• Recess dimensions (H x W x D): 685 x 335 x 97 mm
• Max. permissible dissipation power: 40 W
• Cable entry: Top, bottom, side (pre-punched knockouts)

Final note

The KLV-48HWP-F is a reliable choice for electricians seeking a spacious, easy-to-install distribution board with a clean aesthetic.
