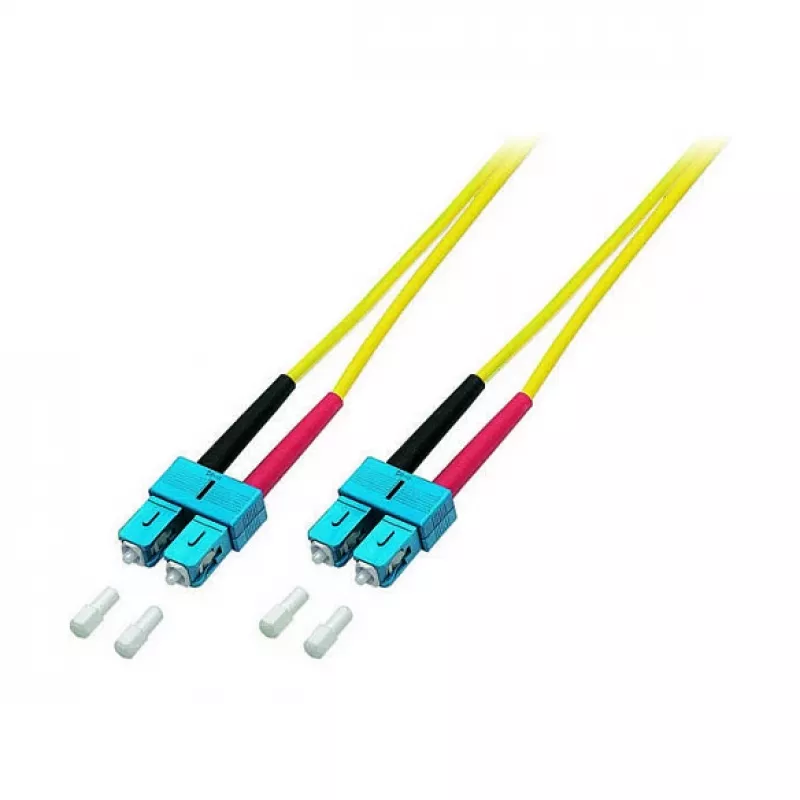

EFB Elektronik ECOFIBER Duplex prepojovací kábel SC-SC 9/125µm OS2 LSZH žltý 3,0mm 15m

The EFB Elektronik ECOFIBER Duplex Jumper SC-SC is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, LAN, and FTTx applications. With OS2 classification and 9/125µm core/cladding, it ensures low attenuation and high bandwidth over long distances. The duplex configuration allows simultaneous bidirectional data transmission, while the SC connectors with PC polish provide low insertion loss and high return loss. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, and the yellow color aids easy identification.

Advantages

This cable offers excellent signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it ideal for indoor installations. The 3.0mm diameter provides flexibility while maintaining durability. It is compliant with RoHS and CE standards, ensuring environmental and safety compliance.

Suitable for

• Data center cabling
• Telecommunications networks
• Local Area Networks (LAN)
• Fiber to the x (FTTx) deployments
• Single-mode fiber optic connections requiring duplex transmission

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Configuration: Duplex
• Fiber Mode: Single-mode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Connector Type: SC to SC
• Connector Polish: PC (Physical Contact)
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3.0 mm
• Cable Color: Yellow
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure proper handling and cleaning of SC connectors before installation. This cable is suitable for indoor use only; for outdoor applications, consider a cable with PE jacket. Pair with EFB Elektronik patch panels and wall outlets for a complete structured cabling solution.
