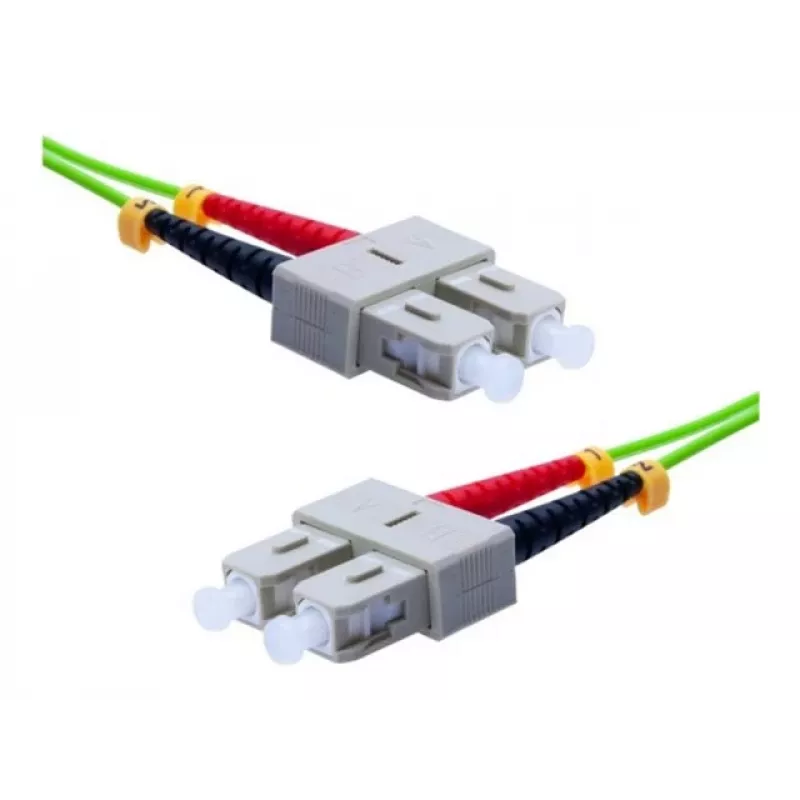

EXERTIS CONNECT OM5 SC Duplex na SC Duplex sklolaminátový patch kábel, 50/125 µm, UPC, limetkovozelený, 2 m 392902

This EXERTIS CONNECT fibre patch cable stands out with OM5 wideband multimode fibre, engineered for shortwave wavelength division multiplexing (SWDM) across 850–953 nm. It delivers four times the bandwidth of OM4 at 850 nm, making it a future-ready choice for high-density data centres that need to scale beyond 100G without recabling. The lime green jacket provides instant OM5 identification in crowded racks, while the SC duplex connectors with UPC polish ensure low insertion loss and reliable physical contact.

Highlights

• OM5 wideband multimode fibre (WBMMF) supports SWDM transmission
• SC duplex to SC duplex connectors with UPC polish
• 50/125 µm core/cladding diameter for compatibility with multimode systems
• LSZH jacket for low smoke and halogen-free safety
• Lime green colour for easy OM5 identification

In daily use

At 2 metres, this cable is ideal for patching between switches, servers, and patch panels in high-speed backbone links. The duplex construction keeps transmit and receive fibres together, reducing installation time and cable clutter. The LSZH jacket meets strict fire safety requirements in enclosed spaces, and the 7.5 mm minimum bend radius allows tight routing without signal degradation.

Full specifications

• Fibre type: OM5 (Wideband Multimode Fibre)
• Core/cladding diameter: 50/125 µm
• Connector 1: SC Duplex
• Connector 2: SC Duplex
• Connector polish: UPC
• Cable length: 2 m
• Cable colour: Lime green
• Jacket material: LSZH
• Cable construction: Duplex
• Number of fibres: 2
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 50 dB
• Bandwidth (EMB @ 850 nm): 4700 MHz·km
• Supported wavelengths: 850 nm, 953 nm
• Attenuation (max @ 850 nm): 2.3 dB/km
• Attenuation (max @ 1300 nm): 0.6 dB/km
• Minimum bend radius: 7.5 mm
• Operating temperature: -20°C to +70°C
• Standards compliance: TIA-492AAAE, IEC 60793-2-10 Type A1a.4

Final note

Choose this OM5 patch cable when you need a reliable, high-bandwidth link that is ready for today's 100G and tomorrow's 400G SWDM applications.
