SFP transceiver modul BlueOptics SFP-FC-S30-A-A-BO 155 Mbit/s 1310 nm

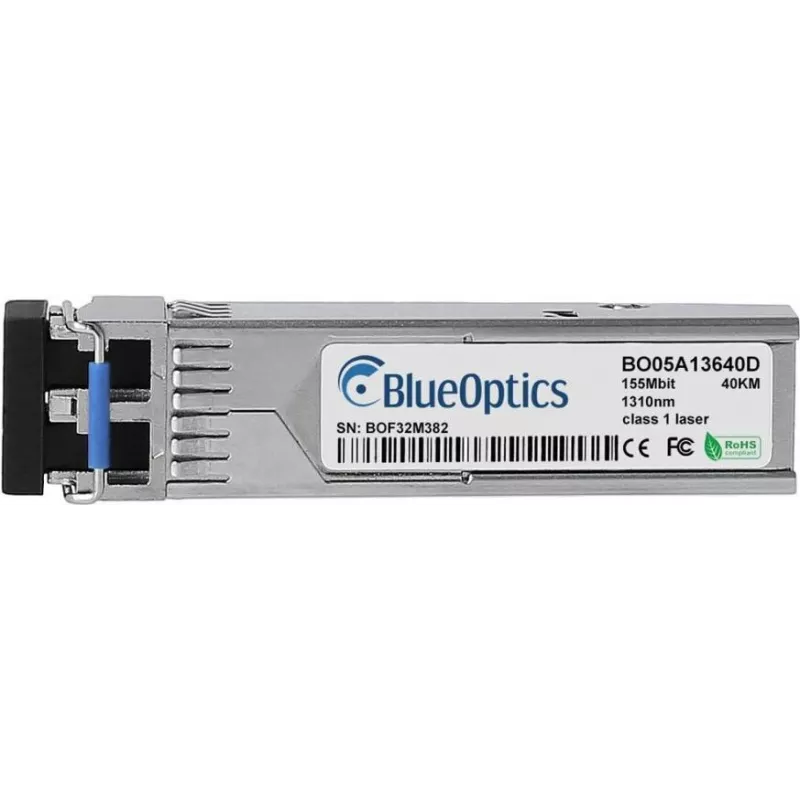

The BlueOptics SFP-FC-S30-A-A-BO is a small form-factor pluggable (SFP) fiber optic transceiver module designed for single-mode networks. It supports a maximum data transfer rate of 155 Mbit/s over single-mode fiber at a wavelength of 1310 nm and uses an LC duplex connector. The module has a compact, lightweight silver housing (approx. 20 g) and is intended for insertion into standard SFP slots to provide reliable long-distance optical links up to 40,000 m.

Advantages

This SFP module combines a standardized SFP form factor with single-mode optical transmission at 1310 nm for predictable performance in long-reach links. Its LC connector and MSA-compliant design ensure compatibility with a wide range of networking equipment that accepts SFP transceivers. The lightweight silver housing simplifies handling and installation while minimizing strain on ports. The module supports common protocols used over optical media and is built to deliver stable data transmission at the specified rate and distance.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP-FC-S30-A-A-BO into a compatible SFP slot on your switch, router or media converter while the device is powered down or hot‑swap capable. Connect an LC duplex single-mode patch cable between transceivers at each end of the link, taking care to match transmit and receive fibers. Configure the host device to recognize the SFP interface and set the appropriate link parameters if required by your equipment. Verify link status and signal levels through device diagnostics or management interfaces.

Recommendations

Install the module in equipment that supports SFP optical transceivers and the required protocols; use single-mode LC patch cords and clean connector endfaces to maintain optimal optical performance. Confirm that your hardware supports the module's data rate and wavelength, and enable digital diagnostics only if the host system provides DDM/DOM support for monitoring supply voltage, laser bias, output/receive power and temperature.
