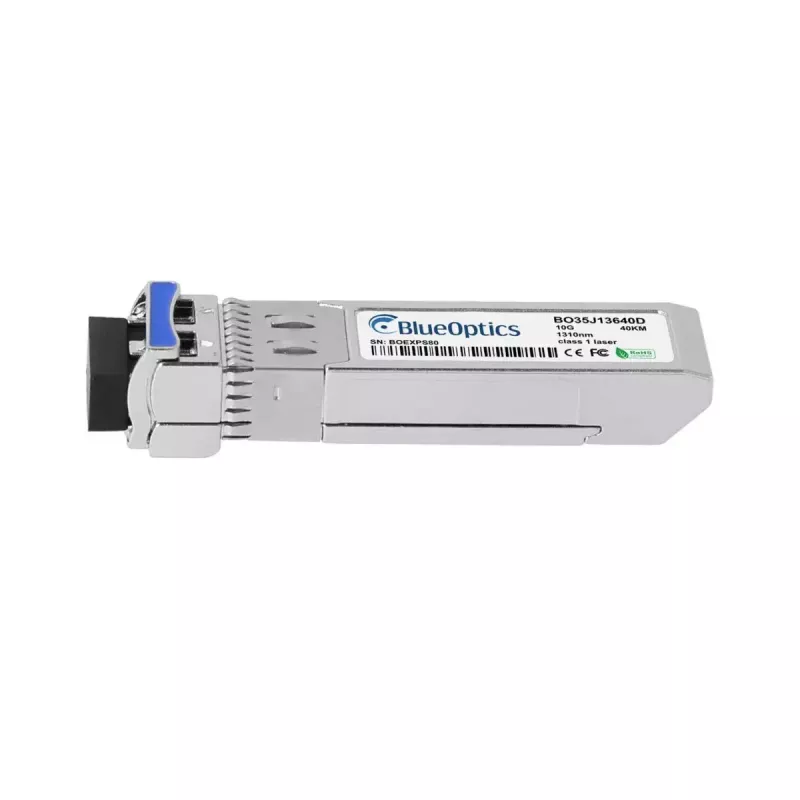

Vláknový transceiver modul BlueOptics TRX100116-BO 10000 Mbit/s SFP+ 1310 nm

The BlueOptics TRX100116-BO 10000 Mbit/s SFP+ 1310 nm is a compact fiber optic transceiver module for high-speed network links. Designed for insertion into SFP+ ports, the module supports data transmission up to 10 Gbit/s over single-mode fiber at a 1310 nm wavelength. Housed in a durable metal casing and weighing approximately 20 g, the module meets RoHS and CE requirements and is suitable for installations where a small form factor and reliable optical connectivity are required.

Advantages

This transceiver delivers 10 Gbit/s throughput with an SFP+ interface, offering compatibility with a wide range of switches, routers and network appliances that accept SFP+ modules. The 1310 nm operating wavelength is appropriate for mid-range single-mode fiber links. The metal housing provides mechanical robustness and thermal stability while the lightweight design makes handling and hot-swap installation straightforward. Compliance with RoHS and CE standards ensures it meets common regulatory and safety expectations.

Suitable for

• 10 Gbit/s single-mode fiber uplinks between switches and routers
• Data center server and storage connectivity requiring SFP+ modules
• Telecommunications links and carrier-grade access equipment
• Network hardware repairs or upgrades where an SFP+ 1310 nm module is required

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Optical wavelength: 1310 nm
• Housing material: metal
• Colour: silver
• Weight: approximately 0.02 kg
• Standards: RoHS and CE compliant

How to use

To install the module, power down the host port if required by the equipment vendor, remove the protective dust caps from the transceiver and fiber connectors, and insert the module into an available SFP+ slot until it seats and latches. Connect the single-mode fiber patch cable with the appropriate connector type, observing transmit/receive orientation. After insertion, verify link status in the host device management interface and confirm the port negotiates at the expected 10 Gbit/s rate. Follow equipment vendor instructions for safe hot-swapping if supported.

Recommendations

Use single-mode fiber rated for 1310 nm transmission and maintain clean connector endfaces to avoid signal loss. Store spare transceivers with dust caps installed and handle the module by the housing to prevent electrostatic discharge to host equipment. Check compatibility with the specific switch or router model before deployment to ensure firmware and port support for third-party SFP+ modules.
