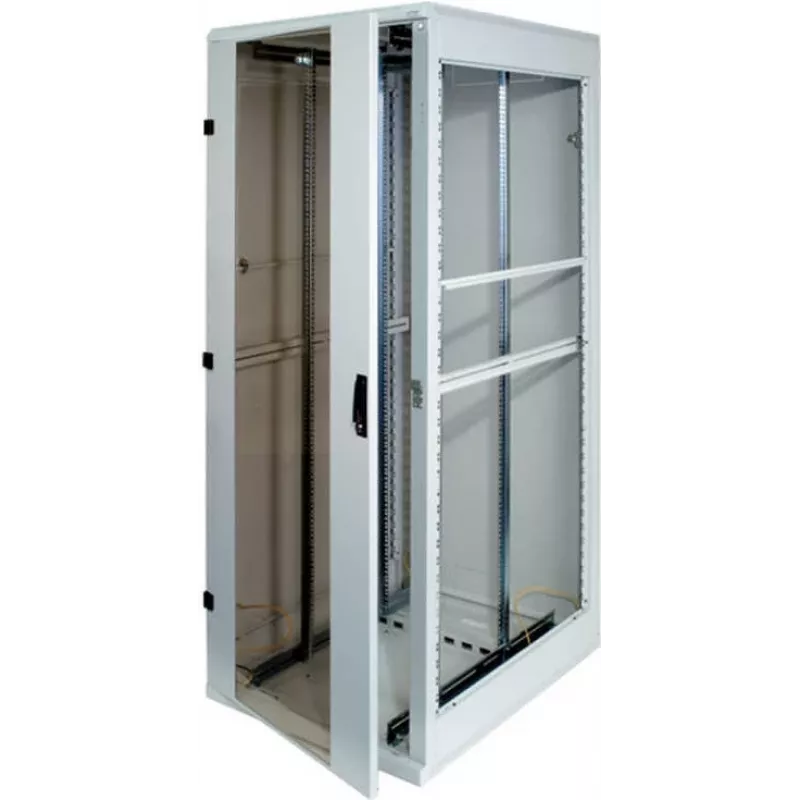

Triton RMA-42-A86-CAX-N1 voľne stojaci sieťový rozvádzač 42U 19", 800 x 600 mm, sivý

The Triton RMA-42-A86-CAX-N1 is a 42U 19" free-standing network cabinet in grey, measuring 800 x 600 mm. It features a welded floor-standing construction with removable side and rear panels, and offers a load capacity of 800 kg.

Key features

• Welded floor-standing distribution cabinet
• Removable side and rear panels
• IP20 degree of protection
• Load capacity: 800 kg
• Double doors with plug-in hinges
• Hinge system allows door opening by almost 180°
• Doors can be easily removed and door hinge changed
• Triton lever handles
• Adjustable vertical 19" raster rails, infinitely adjustable in enclosure depth
• Removable side and rear panels attached with keyed alike locks as standard
• Break-out panels for cable entries in the rear part
• Large opening with break-out panel for Triton fan panel
• Ventilation slots in the frame
• Earthing of all removable parts
• Flex frame (applies to 800 mm wide distributors) enables installation of adjustable vertical mounting rails at 19", 21" and 23" spacing
• Swivelling frame option for 800 mm wide RMA and RZA distributors with load capacity 150 kg; maximum installation depth for 19" accessories is 330 mm
• Patent: PUV 2013-27443

Specifications

• Brand: Triton
• MPN: RMA-42-A86-CAX-N1
• Product colour: Grey
• Height: 42U
• Width: 800 mm
• Depth: 600 mm
• Protection degree: IP20
• Load capacity: 800 kg
